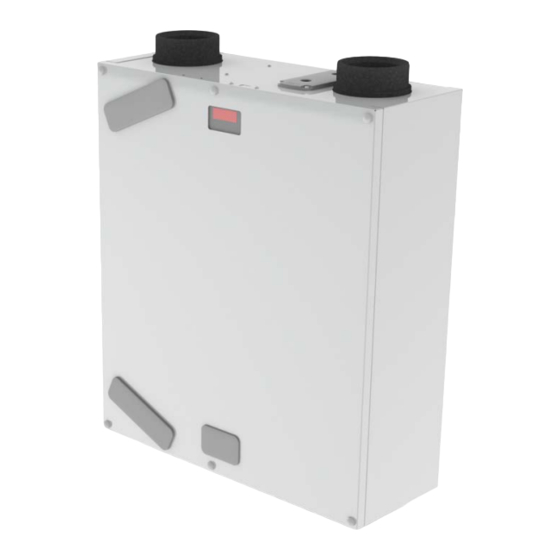

  • Page 1 ComfoAir 160 User manual...
  • Page 2 All rights reserved. This manual has been compiled with the utmost care. The publisher cannot be held liable for any damage caused as a result of miss- ing or incorrect information in this manual. In case of dis putes the Dutch version of these instructions will be binding. EN - II...

  • Page 3: Table Of Contents

    Table of Contents Preface ................................1 INTrodUCTIoN .............................. 1 Warranty and liability .......................... 1 1.1.1 Guarantee conditions ........................ 1 1.1.2 Liability ............................1 Safety ..............................2 1.2.1 Safety regulations ........................2 1.2.2 Safety provisions and measures ....................2 1.2.3 Pictograms used ........................2 For ThE USEr ...............................
  • Page 4 EN - IV EN - IV...

  • Page 5: Preface

    Any other application is seen as inappropriate use and can result in damage to the The device's name is ComfoAir 160. In the following man- ComfoAir or personal injury, for which the manufacturer ual it will be referred to as ComfoAir.

  • Page 6: Safety

    Safety 1.2.2 Safety provisions and measures • The ComfoAir cannot be opened without using tools; 1.2.1 Safety regulations • It should not be possible to touch the fans, therefore Always comply with safety regulations in this manual. ducting must be connected to the ComfoAir at a mini- Non-compliance with the safety regulations, warnings, mum duct length of 900mm. notes and instructions in this manual can cause personal 1.2.3 Pictograms used injury or damage to the ComfoAir.

  • Page 7: For The User

    Congratulations, you are the owner of a colder, air from outside the building. ComfoAir 160, a heat recovery unit from Zehnder. 2.1.3 Bypass for free cooling We wish you lots of comfort.

  • Page 8: Enthalpy (Optional)

    Access to the menus 2.1.7 Enthalpy (optional) It is possible to fit the ComfoAir with an enthalpy ex- Press display description changer. An enthalpy exchanger helps to regulate hu- quence midity levels in the dwelling. In addition to heat recovery, MENU Time delay the enthalpy exchanger also ensures moisture recovery.

  • Page 9: Bathroom Switch

    Setting the ventilation using the normal (or previous) setting when deactivated, but first waits for the overrun timer to run its course. Once 3-position switch(es) the programmed overrun timer is complete, the ComfoAir A 3-position switch can be used to set 3 different ventila- returns to the normal (or previous) ventilation setting.

  • Page 10: Cc Ease Panel

    2.2.5 CC Ease panel The ComfoAir Luxe can be operated by means of a CC Ease panel, which can be ordered separately. The CC (Comfort Control) Ease panel is a digital operat- ing device which can be mounted on the wall in the living room and from there communicates with the ComfoAir.

  • Page 11: Operating The Cc Ease Panel

    operating the CC Ease panel 2.3.2 Reading and setting the comfort The CC Ease panel is used for the following: temperature • Reading and setting the day and time; The comfort temperature can be read, but also set to the Reading and setting the comfort temperature; • desired indoor temperature. From this temperature set- •...

  • Page 12: Switching Boost On

    2.3.4 Switching Boost on 1. Press“ ” longer than 2 seconds. - Wait until '3t' appears. Setting the ventilation volume The ventilation volume can also be set manually by in- creasing or decreasing it. A total of 4 ventilation volumes/ Once the programmed time delay is complete, the Com- levels can be set.

  • Page 13: Setting A Personal Ventilation Programme

    3. Press " " again (third time) to switch the supply 6. Press " ". and exhaust fans on again. - Wait until the hour, e.g. “ 7 ”, starts blinking. 7. Select the desired start time in hours using " " or " ". Bear in mind that switching off the supply or exhaust fan will temporarily immobilize your 8. Press "...
  • Page 14 The user can only access P menus P1, P2 and Only in the P2 menus settings can be altered. P9 to set additional programmes. The remain- The other P-menus (P1 and P9) can only be ing P menus (P3 to P8) are for use by the in- read.

  • Page 15: P Menus For The User

    2.3.8 P menus for the user Menu P1 ¨ Status of programmes Status Sub- description Activated menu Is menu 21 currently active? Yes (1) / No (0) Is menu 22 currently active? Yes (1) / No (0) Is menu 23 currently active? Yes (1) / No (0) Is menu 24 currently active? Yes (1) / No (0)
  • Page 16 Time delay values Sub-menu description Minimum Maxi- General reset Overrun timer for ventilation setting 3 " using ". 1 Min. 120 Min. 30 Min. • A fter pressing " " (> 2 sec.), the continuously Note: ComfoAir will switch to the setting for ‘x’ high only applies to systems fit- minutes and then automatically returns to the ted with an rF switch.

  • Page 17: Maintenance By The User

    Maintenance by the user The following maintenance must be carried out by the user: • Replacing the filters; • Cleaning the valves (in the dwelling). A concise explanation of these maintenance activities is given in the paragraphs below. Failure to carry out (periodic) maintenance on the ComfoAir ultimately compromises the per- formance of the ventilation system.

  • Page 18: Malfunctions

    The installer will have set all the valves to ensure the op- This is given on the identification plate on the top of the timum performance of the ventilation system. Therefore, ComfoAir. The system should not be disconnected from do not change the setting of the valves. the power supply, unless the ComfoAir must be taken out of service due to a serious malfunction, or for filter clean- ing/replacement or any other compelling reasons.

  • Page 19: Eec Declaration Of Conformity

    8028 PM Zwolle-NL Tel.: +31 (0)38-4296911 Fax: +31 (0)38-4225694 Company register Zwolle 05022293 EEC declaration of conformity Machine description : heat recovery units: ComfoAir 160 series Complies with the following directives : Machinery Directive (2006/42/EEC) Low Voltage Directive (2006/95/EEC) EMC Directive...
  • Page 20 Zehnder Group Nederland B.V. Lingenstraat 2 8028 PM Zwole Nederland Tel.: (038) 429 69 11 Fax.: (038) 422 56 94 Internet: www.jestorkair.nl E-mail: info@jestorkair.nl...
